纏繞機采用臥式分體結構布局，主要包括纏繞小車、繞絲嘴、伸臂、主軸、紗架、浸膠裝置、預浸帶纏繞裝置(可選配)、電控柜等部件。配置高精度西門子840 D 數控控制系統，張力控制系統采用氣動伺服控制張力器對每一團紗進行張力控制和合股纖維張力測量顯示，每團紗的張力互不影響，具備停機繼續保持張力的功能。該設備能夠適用碳纖維、玻璃纖維及有機纖維等纏繞工藝要求。濕法纏繞能進行罐體(等開口及不等開口)、管道、球體、錐體、組合體等回轉體及方形制品的纖維纏繞。

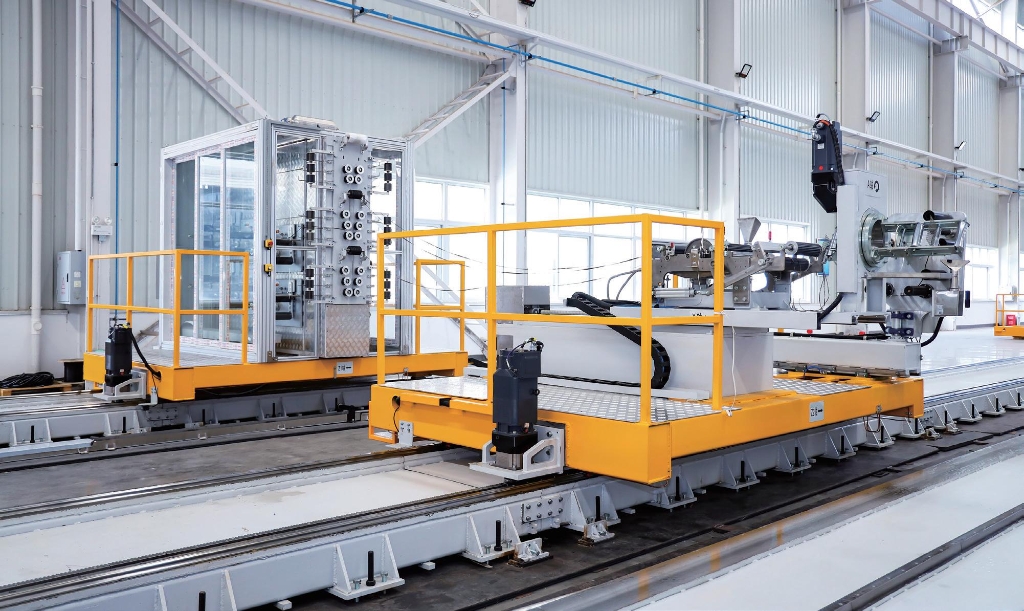

四軸纏繞機移動平臺

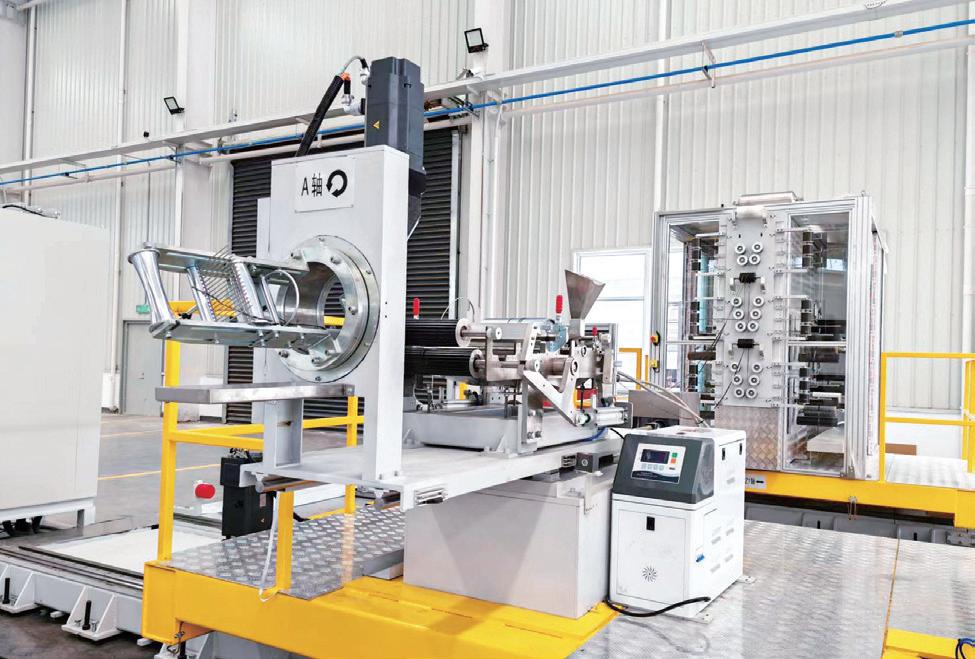

四軸纏繞機濕法纏繞頭

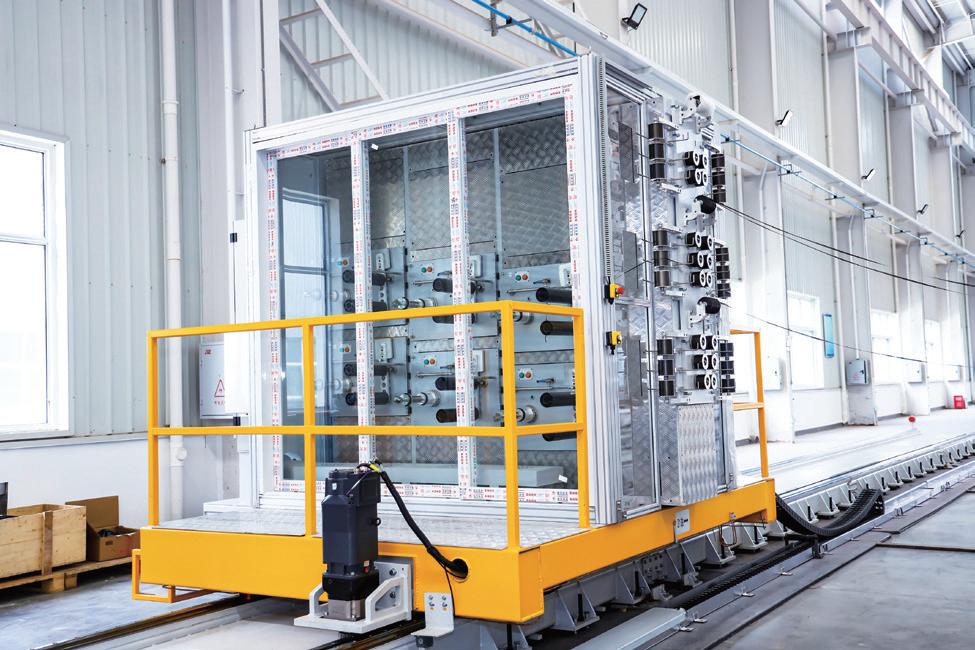

四軸纏繞機紗架

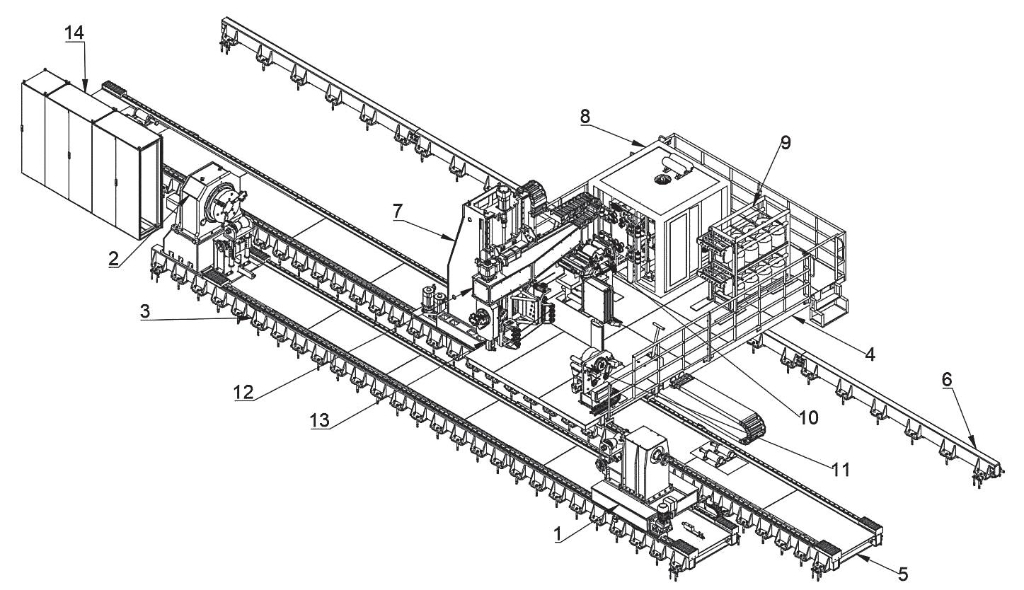

1-尾座2-主軸箱體部件3-主軸軌道基座4-平臺小車5-軌道基座6-輔助軌道7-立柱部件
8-碳纖紗架部件9-玻纖紗架部件10-浸膠部件11-預浸帶部件12-伸臂部件13-繞絲嘴部件14-電氣柜
FCR Ⅱ 2014 臥式纏繞機主要技術參數
Horizontal winding machine parameters
1 |
最大工件夾持長度 Maximum length of workpiece clamping |
16000(可定制) customizable |
2 |
最大產品纏繞長度 Maximum length of product wrap |
14000(可定制) customizable |
3 |
最大纏繞產品直徑 Maximum diameter of wrap product |
2000(可定制) customizable |
4 |
最大夾持芯模重量 Maximum weight of wrap product |
15 |
5 |
最大芯模轉速 Maximum speed of mandrel |
75 |
6 |
纏繞角 Winding corners |
0°~90°(根據工藝調整) adjust according to request |
7 |
小車最大行走速度(m/min) Maximum travel speed of the trolley |
60 |
8 |
小車最大行程 Maximum travel of trolley |
16500 |
9 |
伸臂最大速度(m/min) Maximum speed of reach arm |
48 |
10 |
伸臂最大行程 Maximum reach of arm extension |
800 |
11 |
絲嘴轉動范圍 Nozzle rotation range |
±180° |
12 |
絲嘴運行速度(r/min) Running speed of the nozzle |
0～30(可調) adjust according to request |
13 |
預浸帶最大寬度 Maximum width of prepreg tape |
150 |
14 |
預浸帶最大外徑 Maximum outside diameter of prepreg tape |
400 |
15 |
預浸帶裝置扭矩(N.m) Prepreg tape unit torque |
400 |
16 |
纏繞精度 Wrap accuracy |
±0.1 |
17 |
主軸定位精度 Spindle positioning accuracy |
±0.1° |
18 |
小車定位精度 Trolley positioning accuracy (mm) |
≤±0.2 |
19 |
伸臂定位精度 Reach arm positioning accuracy |
≤±0.2 |
20 |
紗團數量(團) Number of yarn balls (wadded) |
16(可定制) customizable |
21 |
紗團最大直徑 Maximum diameter of yarn ball |
220 |
22 |
紗團最大長度 Maximum length of yarn ball (mm) |
280 |
23 |
單股紗團張力范圍(N) Single strand yarn tension range |
5-160 |
24 |
膠槽加熱范圍(℃) Heating range |
室溫—80 |
25 |
膠槽容量(L) Resin bath capacity |
6 |
26 |
浸膠方式 Resin method |
輥筒式上浸 Roller type upper dipping |
27 |
設備總功率(KW) Total power |
81.3 |
龍門式多工位纖維纏繞機主要技術參數
Multi-station gantry type winding machine parameters
技術參數 Technical parameters |
||
序號 |
參數名稱 name |
參數指標 indicator |
工位數 Number of work stations |
3 |
|
2 |
制品最大纏繞直徑 Maximum winding diameter of the product |
600 |
3 |
纏繞制品最大重量(單軸)(kg) Maximum weight of wrapped product (single shaft) |
≤250 |
4 |
主軸中心距 Spindle center distance |
700 |
5 |
制品最大長度 Maximum length of product |
2500 |
6 |
主軸轉速 Spindle speed |
0-125 |
7 |
纏繞小車速度(m/s) Winding cart speed |
0-2.5 |
8 |
小車定位精度 trolley positioning accuracy |
≤0.05 |
9 |
小車重復定位精度 trolley repeat positioning accuracy |
≤0.02 |
10 |
小車運動行程 Trolley motion stroke |
≤3000 |
11 |
纏繞伸臂速度(mm/s) Winding overarm speed |
0-500 |
12 |
伸臂最大行程 Max. reach |
600 |
13 |
伸臂定位精度 Reach arm positioning accuracy |
≤0.05 |
14 |
伸臂重復定位精度 Reach arm repeat positioning accuracy |
≤0.02 |
16 |
繞絲嘴翻轉速度 Twist twist speed |
0-200 |
17 |
繞絲嘴翻轉角度 Flip the Angle around the wire nozzle |
±180° |
18 |
纏繞角 Wrap corners |
0-90° |
19 |
纏繞角重復精度 Wrap Angle repeat accuracy |
≤0.01° |
20 |
纏繞排紗精度 Winding row accuracy |
≤±0.1 |
21 |
主軸與尾座同軸度 Spindle and tailstock coaxiality |
≤0.15/1000,全長≤0.5 |
22 |
絲嘴小車運動與主軸軸線平行度 Degree of parallelism between the movement of the nozzle trolley and the axis of the main shaft |
≤0.1/1000,全長≤0.8 |
23 |
控制系統 Control system |
西門子840DSL Siemens 840DSL |
24 |
環向纏繞速度(m/s) Loop winding speed |
0-2.5 |
25 |
螺旋纏繞速度(m/s) Spiral winding speed |
0-2.2 |
電控張力紗架 Electronically controlled tension yarn holder |
||
1 |
容紗量(團) Yarn capacity |
24 |
2 |
單團紗重 Single ball yarn weight |
≤6 |
3 |
紗團最大外徑 Maximum outside diameter of yarn ball |
200 |
4 |
紗團裝夾內徑 Inside diameter of yarn ball clamp |
76±0.5 |
5 |
張力控制值(N) Tension control value |
5-160 |
浸膠系統 Dipping system |
||
1 |
浸膠槽數 Number of resin bath |
3 |
2 |
最多紗團數目(預留24團紗) Maximum number of yarns (24 bobbins reserved) |
3*8 |
3 |
膠槽導紗裝置 Resin bath yarn guide device |
輥筒式上浸 Roller type upper dipping |
4 |
浸膠方式 Resin method |
上浸膠 Top dip glue |
5 |
加熱功率(KW) Heating power |
2kw*3 |
6 |
浸膠槽加熱溫度(℃) Dip bath heating temperature |
室溫—80 Room temperature |
7 |
每個浸膠槽容膠量(L) Each resin bath capacity |
5 |
8 |
膠槽控溫精度(℃) Resin bath temperature control accuracy |
±2 |
